Carbonda AF01

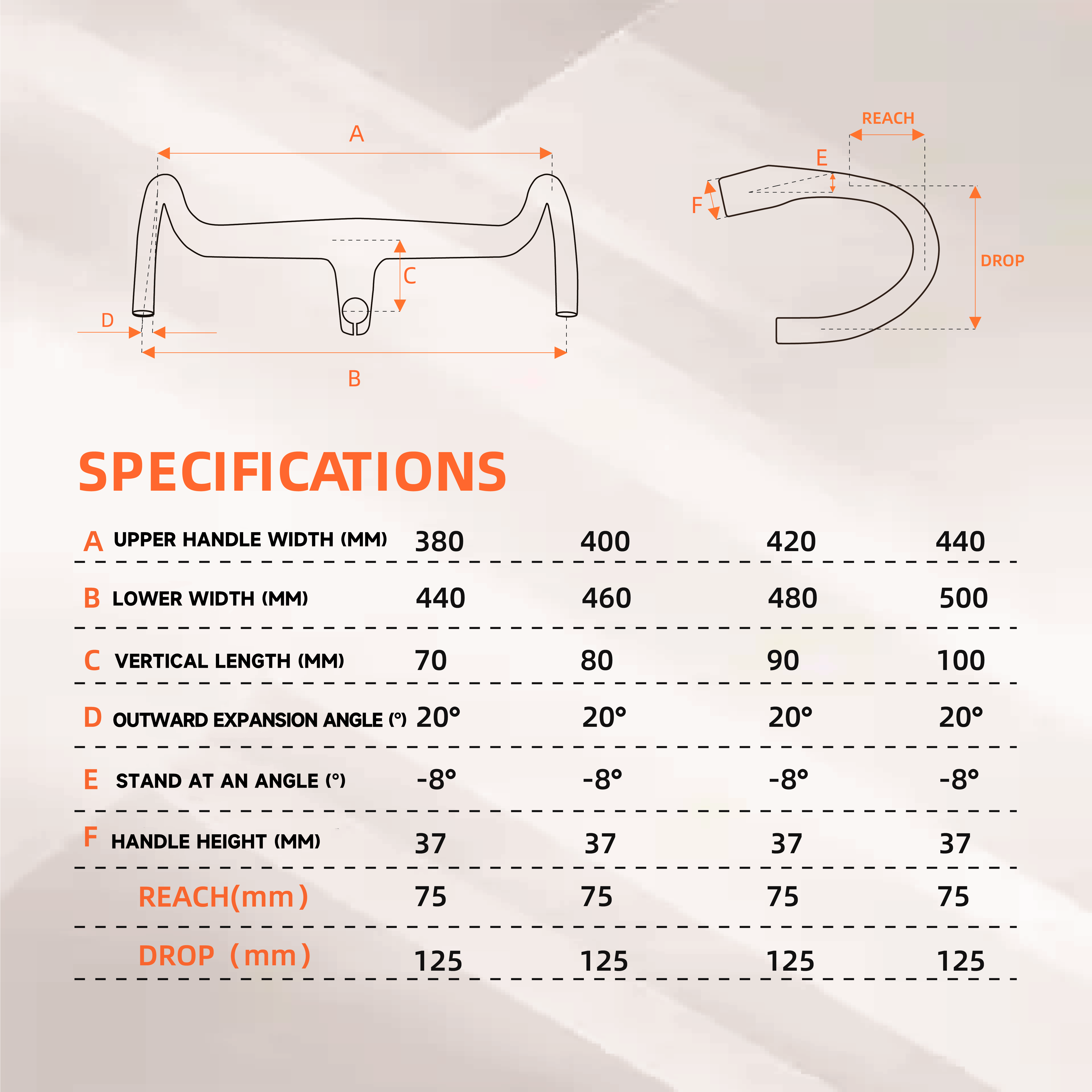

The AF01 SSL and AF01 Standard framesets are sold with a "Handlebar" option of "Canwin aelous" or "W/O Handlebar" (EUR 1,179.00 for the SSL frameset at fetch time, pre-order); the frame has integrated cabling and a 1-1/2" x 1-1/2" ACR headset. (1) Canwin Aelous Integrated Gravel Handlebar (https://afbicycles.com/en/products/canwin-aelous-integrated-gravel-handlebar, the bar's spec image https://afbicycles.myshopify.com/cdn/shop/files/2.png?v=1753089733): widths 380/400/420/440 mm (A, "upper handle width"); lower width (B) 440/460/480/500 mm at the drop ends; bar reach 75 mm; drop 125 mm; flare 20 deg (D, "outward expansion angle"); stem angle -8 deg (E, "Stem Angle (deg) -8"); stem clamp stack 37 mm (F, "Stem Height"); stem lengths 70/80/90/100 mm; steerer clamp 28.6 mm; store variants every length x every width (70*380 to 100*440). Seatpost: 27.2 mm round (AF SP01 27.2 mm post sold separately; its offset is not stated on the frame page). Frame: AF01 SSL T1000/M65 carbon, 830 g +/-50 g (M, excl. hardware and paint), fork 435 g; AF01 Standard T800/M46, 980 g +/-50 g; T47-86 bottom bracket, UDH, flat mount, 160 mm rotors front and rear, 12x100 front and 12x142 rear thru-axles, max tyre 50C, max chainring 46T or 50-34T, down tube storage, max rider weight 120 kg, 5-year warranty.

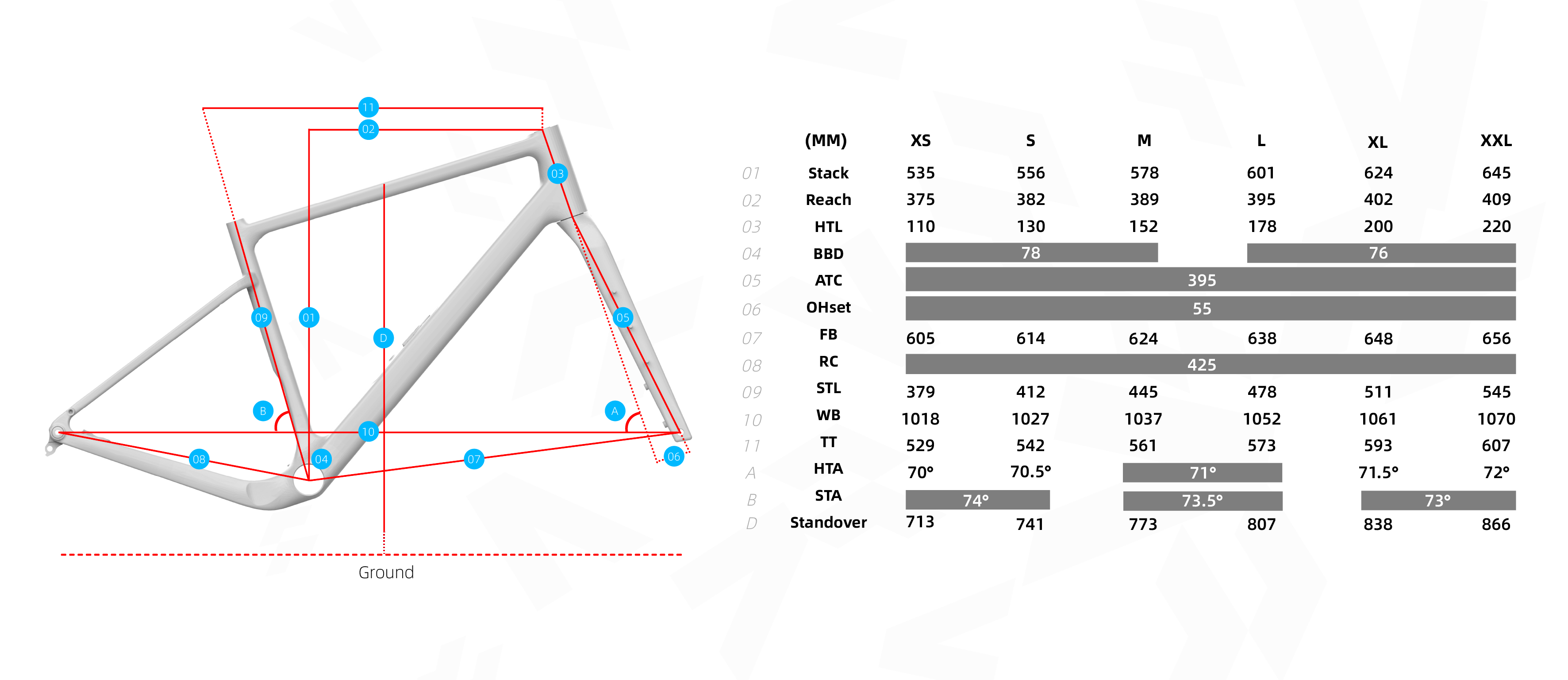

The brand is recorded as Carbonda because the frame is Carbonda's and carbonda.com lists it; riders will meet it as "AF bicycles AF01" (a naming call for Carl). TABLE LEGEND (the numbered diagram beside the table, checked against each row): 01 Stack = vertical from the BB centre to the horizontal through the head tube top; 02 Reach = horizontal from the BB centre's vertical to the head tube top; 03 HTL = head tube length along the tube; 04 BBD = BB drop below the axle line; 05 ATC = fork axle-to-crown along the steering axis, 395 every size (not a schema field); 06 OHset = fork offset, 55 every size; 07 FB = BB centre to front axle in a straight line, recorded as front_centre; 08 RC = BB centre to rear axle, recorded as chainstay, 425 every size; 09 STL = seat tube length along the tube from the BB centre; 10 WB = wheelbase; 11 TT = top tube, drawn horizontal between the extended seat tube and head tube axes, recorded as top_tube_effective; A HTA; B STA; D Standover = vertical from the top tube to the ground (the point along the top tube is not stated). Merged cells: BBD 78 spans XS-M and 76 spans L-XXL; HTA 71 spans M-L; STA 74 spans XS-S, 73.5 spans M-L and 73 spans XL-XXL; ATC, OHset and RC span all six sizes. STACK DATUM: the drawing measures stack and reach to the top of the head tube with no headset cover drawn. The page's own prose (German store copy) says "70-72 deg" head angles, wheelbase "1.018-1.070 mm", stack 535-645 and reach 375-409 and "constant 425 mm chainstay", all of which agree with the table. NOT PUBLISHED and therefore null: trail, stock stem length, stock bar width. tyre_width_mm null: only the maximum (50C) is stated. MODEL YEAR: not printed; image uploaded with Shopify version stamp 1777365787 (late April 2026), store product published 2025-06-18; model_year null. integrated_cockpit true because the frame is sold for the one-piece Canwin Aelous (or bare) with integrated cabling. Bike Insights has no AF01 and no AF bicycles brand (checked 2026-10-20). No Panda Podium, Geometry Geeks or 99 Spokes request was made. Source: image_table (the maker's direct-order store afbicycles.com, linked from carbonda.com/road/AF01.html as "Direct-order website"; the geometry is one image on the AF01 SSL and AF01 Standard product pages: https://afbicycles.myshopify.com/cdn/shop/files/GEM_new_6c99a09a-cb68-4108-885e-688e254efb02.png?v=1777365787, 3544x1536 px, numbered frame diagram + table; numbers read from the image by eye, image NOT stored)
