Yoeleo R11 DB

Frameset ships as "R11 Frame+Fork+Handlebar+Seatpost". Handlebar options on the page: (1) H9 Integrated one-piece bar/stem: stem 90/100/110/120 mm x width 380/400/420/440 mm, angle -7 deg, reach 80 mm, drop 125 mm (product H9 V3 OD1 28.6 mm or H9 V2 OD2 31.8 mm in the store); (2) ST1 stem + H11 aero bar (two-piece): widths 360/380/400/420/440 mm, stem 90/100/110/120 mm, reach 64 mm, drop 126 mm (the ST1 carbon stem is -10 deg, 30 mm stack height, 28.6 mm steerer per yoeleo-altera-g21.json); (3) "Without Handlebar": ships with a bearing cover that accepts a conventional bar with internal cables. Product details: tapered steerer 1-1/8 in top / 1-1/2 in crown, head tube "1-1/2 in Straight", fork offset "45" (printed with a degree sign on the page, a maker typo for mm; the geometry table row L FORK RAKE(mm) also says 45), BB86, 12x142 / 12x100 thru-axles, flat mount, D-shaped seatpost with slider saddle clamp (offset not stated), 32C tyre clearance, frame 890 g raw / 980 g Arctic Ice / 1010 g Ruby Red at 49 cm +/-50 g, fork 450-455 g, seatpost 204 g, rider limit 110 kg, Toray T1000. Included in the box: compression ring, two head tube bearings, compression end cap, one handlebar spacer, saddle clamp set, seatpost clamp, cable sponges, axles, CH9 computer holder, compression plug, hanger. Spacer heights, max spacer stack and headset cover height are not published. stock_stem_length / stock_bar_width null (the bar size is a buyer's choice).

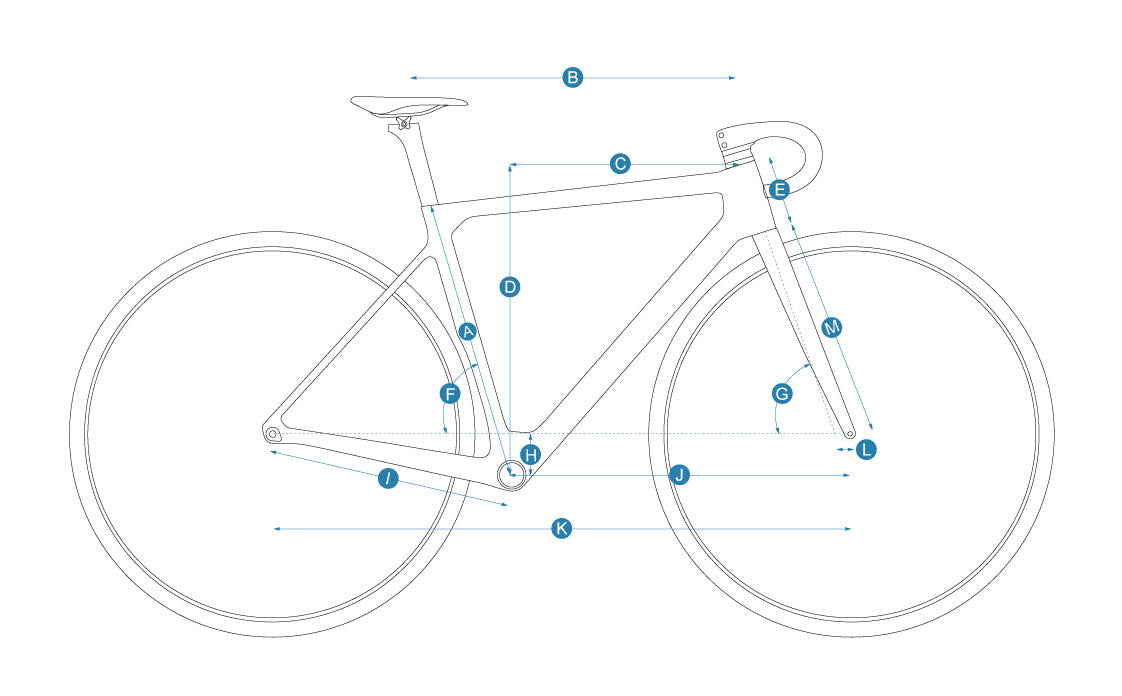

Rider height row: 49 165-173 cm, 52 170-178, 54 175-183, 56 180-188, 59 185-193. STACK/REACH DATUM: the drawing takes D vertically from the BB centre to the level of the head tube top and C horizontally from that vertical to the head tube top centre (the H9 bar is drawn but the dimension stops at the head tube), i.e. conventional frame stack and reach. TOP TUBE: labelled "TOP TUBE LENGTH(mm)" with no qualifier; the drawing draws B horizontal from the seatpost axis to the head tube top, so it is recorded as top_tube_effective. Standover and trail are not published (null). SIZE LABELS: the table header prints 49/52/54/56/59 and the product details say "Sizes: 49cm,52cm,54cm,56cm,59cm"; the file uses the "49cm" form like the sibling yoeleo-altera-g21.json. The page writes angles as "74°" etc.; stored as numbers. ODDITIES AS PRINTED: reach rises only 1 mm from 52 (384) to 54 (385) while stack rises 17.5 mm, and front centre only 0.7 mm (579.5 to 580.2); wheelbase equals 975 on both 52 and 54. Consistency check (mine, not published): sqrt(J^2 - H^2) + sqrt(I^2 - H^2) reproduces K to 0.0 mm on the 49 (560.8 + 404.2 = 965.0) but over-predicts it by 4.6 mm on the 52 (979.6 vs 975), 5.3 mm on the 54 (980.3 vs 975), 5.1 mm on the 56 (995.1 vs 990) and 5.2 mm on the 59 (1000.2 vs 995); so either the front centre or the wheelbase row is about 5 mm off on sizes 52-59 on the maker's page - recorded exactly as printed and flagged. MODEL YEAR: not stated on the page (the geometry image asset carries v=1758870926, i.e. September 2025), so null. Category: the page title calls it "R11 Super Light Road Frameset" and the copy a race bike; recorded as climbing road (aero-shaped tubes but sold on weight). No aggregator consulted. Source: html_table (maker's own Shopify store, "Geometry" section is an HTML table with columns 49/52/54/56/59 and rows A-M, with the drawing https://www.yoeleo.com/cdn/shop/files/R11-geometry.jpg beside it, read for the letter keys only)
