Geometry, every size, from the maker's table
The tinted row is the size drawn beside it. Press a size to draw it.The table runs on to the right: 6 more columns after Reach. Scroll it sideways to read them.
The M drawn to scale from the table, with no build on it. Stack and reach run from the bottom bracket to the top of the head tube; every size is solved from those two. One square is 100 mm.
The maker's cockpit
No stock cockpit I can name, so every size is solved on a generic stem and bar unless you choose one on the sheet.Generic stem and barAssumedNo bar is listed for this frame.
In the maker's words
Kept whole, as I read it off winspace.cc.Winspace sells its frames bar-less or as "bundles" with its own one-piece bars (HYPER Integrated Handlebar, Zero K, Zero SL, HYPER 2 Riser; Adventure Integrated Handlebar for the gravel frames); the frame page lists no per-size stock bar or stem, so stock_stem_length / stock_bar_width are null.
Cockpit and seatpost, in the maker's words · 157 words
Winspace sells its frames bar-less or as "bundles" with its own one-piece bars (HYPER Integrated Handlebar, Zero K, Zero SL, HYPER 2 Riser; Adventure Integrated Handlebar for the gravel frames); the frame page lists no per-size stock bar or stem, so stock_stem_length / stock_bar_width are null. Head tube "NO.55R 1.5in / ACR / STD (headset included)" on the current frames: FSA ACR full-internal routing through a 1-1/2 in upper bearing, which fits Winspace's own ACR-pattern bars and any ACR-compatible stem. Spacer heights, maximum spacer stack and top-cover height are not published on the frame page. The T1600 page (fetched 2026-08-29) carries no specification block in its HTML beyond the geometry and product-detail images; the table rows O/P give the supplied seatpost as 320 mm with 0 mm setback on XS and S and 360 mm with 15 mm setback on M, L and XL. The store also sells a "T1600 Ultra" build whose page was not fetched.

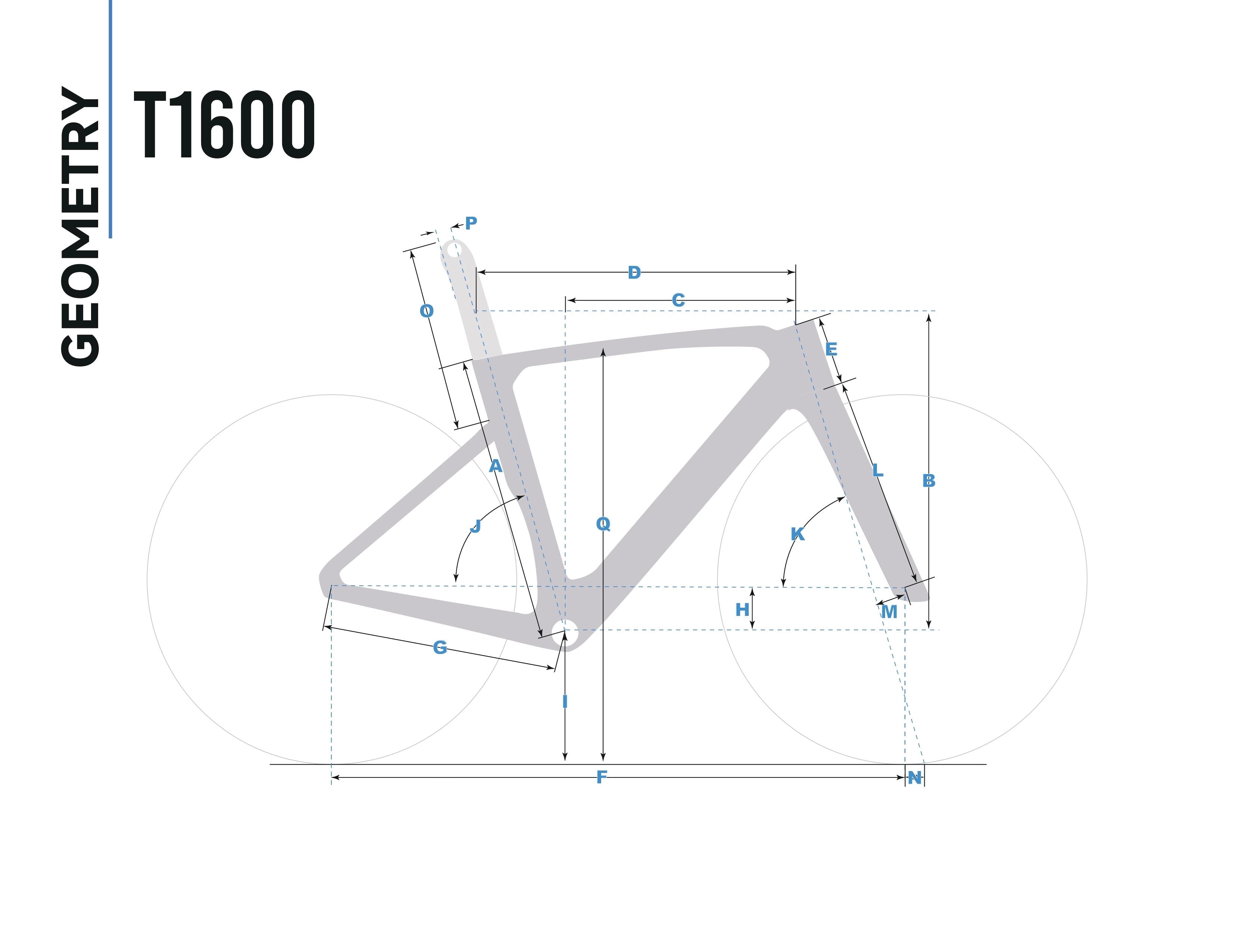

SOURCE: the maker's own store page, "Geometry Chart" tab, two images and no HTML table. Source: image_table (maker's own Shopify store, product page "Geometry Chart" tab: the letter drawing
How I read the maker's table

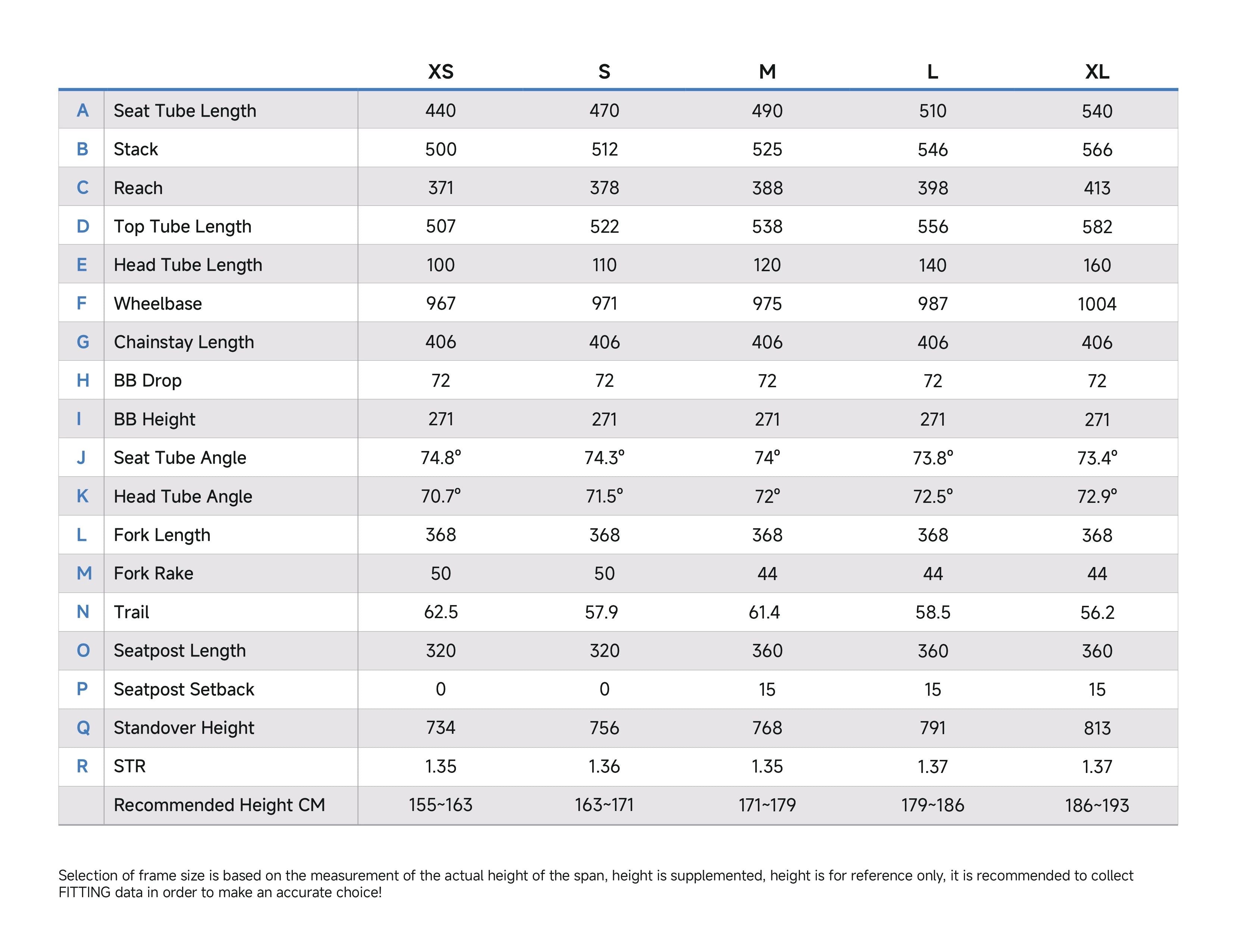

every number was read from the table image (3307x2552 px, sharp) by the collector. The table image carries no model title, but it sits under the "GEOMETRY T1600" drawing on the T1600 page and its file name is T1600_Ultra_Description_6 (the T1600 and T1600 Ultra share the frame). Table rows as printed for XS/S/M/L/XL: BB Height 271 all sizes; Fork Length 368 all sizes; seatpost 320/320/360/360/360 with setback 0/0/15/15/15; R STR 1.35/1.36/1.35/1.37/1.37; Recommended Height 155~163 / 163~171 / 171~179 / 179~186 / 186~193 cm; no tyre row on this table (the trail basis tyre is not stated). Front centre not published (null). ODDITY AS PRINTED: trail falls to 57.9 on S then rises to 61.4 on M because the fork rake drops from 50 to 44 mm at M; STR is 1.36 on S and 1.35 on M. Consistency check (mine, not published): with a 350 mm wheel radius the printed head angles and rakes give trail 62.1 / 57.8 / 61.4 / 58.6 / 56.4, within 0.5 mm of the printed row. MODEL YEAR: not stated (Shopify product published 2025-05-16; image assets versioned 2026-07); null. Category aero road (the page: "Race-Ready Performance", Winspace's aero model). No aggregator consulted.
Source: image_table (maker's own Shopify store, product page "Geometry Chart" tab: the letter drawing https://www.winspace.cc/cdn/shop/files/T1600_Description_5.webp (headed "GEOMETRY T1600") and the table https://www.winspace.cc/cdn/shop/files/T1600_Ultra_Description_6_6b8b9828-63de-4921-aed1-a844e9e4761b.webp (3307x2552, rows A-R); numbers read from the table image by the collector, images NOT stored)
