Winspace SLC5.0
Road · 5 sizes
Sign in and add the bike you ride, and this table will say what each size needs for your position.
Sign in
This is the bike I ride
No account is needed to read the table. Report a wrong number · Correct this bike
- Bike
- Winspace SLC5.0 · Road · 5 sizes · integrated cockpit
- Geometry
- winspace.cc, fetched 29 Aug 2026, re-checked, no differences
- Cockpit
- Generic stem and bar, assumed
- Solved with
- cover 15 mm (assumed), max spacers 40 mm (assumed), stem clamp centre 20 mm (assumed), so every verdict carries ±10 mm at the bar
- Sheet
- 6 September 2026 · 210 bikes, 43 makes, 1,262 sizes in the catalogue
Geometry, every size, from the maker's table
The tinted row is the size drawn beside it. Press a size to draw it.| Size | Stack (mm) | Reach (mm) | Head angle (deg) | Seat angle (deg) | Head tube (mm) | Chainstay (mm) | Wheelbase (mm) | Standover (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 509 | 371 | 70.8 | 75 | 108 | 406 | 974 | 731 |
| S | 520 | 377 | 71.4 | 74.5 | 118 | 406 | 978 | 747 |
| M | 536 | 386 | 72.1 | 74.1 | 130 | 406 | 983 | 765 |
| L | 556 | 394 | 72.4 | 73.6 | 150 | 406 | 994 | 790 |
| XL | 576 | 404 | 72.7 | 73.1 | 170 | 406 | 1007 | 814 |
The table runs on to the right: 6 more columns after Reach. Scroll it sideways to read them.
The M drawn to scale from the table, with no build on it. Stack and reach run from the bottom bracket to the top of the head tube; every size is solved from those two. One square is 100 mm.
The maker's cockpit
No stock cockpit I can name, so every size is solved on a generic stem and bar unless you choose one on the sheet.Generic stem and barAssumedNo bar is listed for this frame.
In the maker's words
Kept whole, as I read it off winspace.cc.Winspace sells its frames bar-less or as "bundles" with its own one-piece bars (HYPER Integrated Handlebar, Zero K, Zero SL, HYPER 2 Riser; Adventure Integrated Handlebar for the gravel frames); the frame page lists no per-size stock bar or stem, so stock_stem_length / stock_bar_width are null.
Cockpit and seatpost, in the maker's words · 184 words
Winspace sells its frames bar-less or as "bundles" with its own one-piece bars (HYPER Integrated Handlebar, Zero K, Zero SL, HYPER 2 Riser; Adventure Integrated Handlebar for the gravel frames); the frame page lists no per-size stock bar or stem, so stock_stem_length / stock_bar_width are null. Head tube "NO.55R 1.5in / ACR / STD (headset included)" on the current frames: FSA ACR full-internal routing through a 1-1/2 in upper bearing, which fits Winspace's own ACR-pattern bars and any ACR-compatible stem. Spacer heights, maximum spacer stack and top-cover height are not published on the frame page. SLC5.0 page specification: sizes XS/S/M/L/XL (440/460/480/510/540), carbon T800+T1100+M65+M46, proprietary aero seatpost (table rows O/P: 320 mm with 0 mm setback on XS and S, 360 mm with 15 mm setback on M, L and XL), flat mount, 100/142 mm thru-axles (front M12 P1.0 114L, rear M12 P1.0 163L), tyre clearance up to 700x32C, headset 1-1/2 in to 1-1/2 in (FSA ACR system), internal routing, BSA threaded 68 mm bottom bracket, UDH, weight frame about 705 g (M), fork about 351 g, seatpost (360 mm) about 115 g, UD finish.

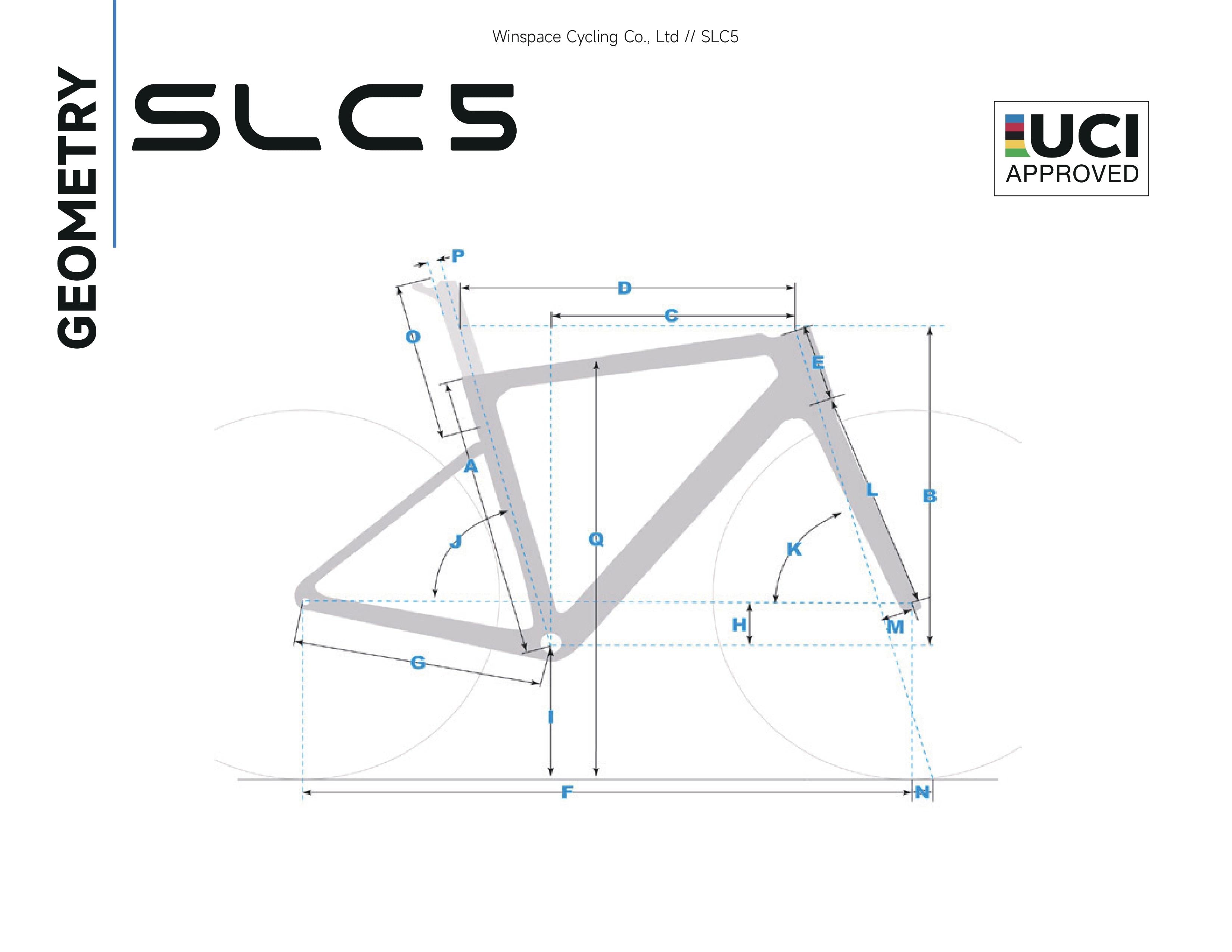

SOURCE: the maker's own store page, whose "Geometry Chart" tab holds two images and no HTML table. Source: image_table (maker's own Shopify store, product page "Geometry Chart" tab: two images, the letter drawing
How I read the maker's table

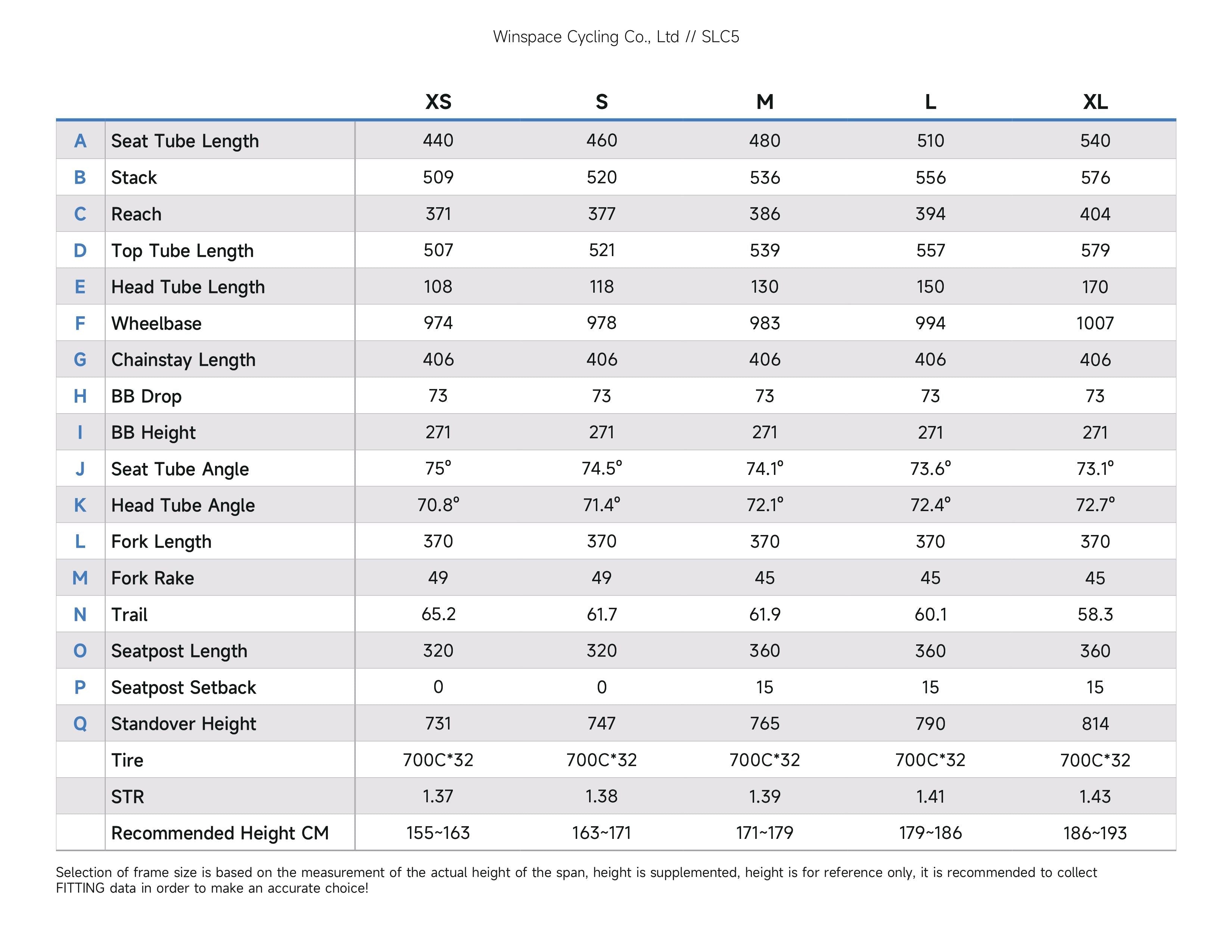

every number was read from the table image (3300x2550 px, sharp) by the collector. Table rows as printed for XS/S/M/L/XL: Tire 700C*32 all sizes (the trail row is therefore for a 32 mm tyre); STR 1.37/1.38/1.39/1.41/1.43; Recommended Height 155~163 / 163~171 / 171~179 / 179~186 / 186~193 cm; BB Height 271 all sizes; Fork Length 370 all sizes; seatpost length 320/320/360/360/360 and setback 0/0/15/15/15. Footnote on the image: "Selection of frame size is based on the measurement of the actual height of the span, height is supplemented, height is for reference only, it is recommended to collect FITTING data in order to make an accurate choice!". Front centre is not published (null). ODDITY AS PRINTED: trail rises from S (61.7) to M (61.9) although the head angle steepens, because the fork rake drops from 49 to 45 mm at M. Consistency check (mine, not published): with a 32 mm tyre on 700c (radius about 350 mm) the printed head angles and rakes give trail 65.6 / 61.9 / 61.9 / 60.4 / 58.8, within 0.5 mm of the printed row, so the table is internally consistent. MODEL YEAR: not stated on the page (Shopify product published 2025-07-15; image assets versioned 2026-07); null. Category: the page calls it "Aero, Superlight" all-round race frame; recorded as climbing road (the lightweight model in the range, next to the aero T1600). No aggregator consulted.
Source: image_table (maker's own Shopify store, product page "Geometry Chart" tab: two images, the letter drawing https://www.winspace.cc/cdn/shop/files/SLC5_Dimension_Table1_1.webp and the table https://www.winspace.cc/cdn/shop/files/SLC5_Dimension_Table1.webp (both 3300x2550, headed "Winspace Cycling Co., Ltd // SLC5"); numbers read from the table image by the collector, images NOT stored)
