Tavelo Grow

SOLD AS A FRAMESET - NO HANDLEBAR INCLUDED. The page's "Specification" tab lists Frame, Fork, Seat post and front/rear thru-axles (Tavelo GR-1) only; the frame is "Clean Routing" (fully internal) and the page offers three Tavelo AVRO one-piece cockpits as "Frequently Bought Together" bundles (select AVRO RISE / AVRO GR / AVRO Gen-1; any width x any length selectable in the store dropdowns). (1) AVRO RISE (https://tavelo.cc/products/rise-cockpit, USD 350; the site banner reads "New aero gravel - Rise handlebar - available now!"): widths 34/36/38/40 = hood-to-hood (W1) 340/360/380/400 mm, drop-to-drop (W2) 370/390/410/430 mm; bar reach 75 mm; drop 120 mm; "Extra Stack" 20 mm (the tops rise 20 mm above the stem clamp); drop flare 5.9 deg; stem angle -10 deg (drawn as 80 deg to the steerer on a 72 deg head angle); stem clamp "Stack" 36.4 mm; stem lengths 80/90/100/110/120/130/140 mm; weight 280 g (380x110); store variants 340/360/380/400 x 80-140. (2) AVRO-GR (https://tavelo.cc/products/avro-gr, USD 300; gravel flared bar, spec image uploaded 2026-03-24): widths 36/38/40/42 = hood-to-hood 360/380/400/420 mm, drop-to-drop 425/445/465/485 mm; bar reach 78 mm; drop 137 mm; "Drop flare 1" 17.35 deg and "Drop flare 2" 24.35 deg (two-stage flare); stem angle 80 deg to the steerer (i.e. -10 deg); stem clamp stack 36.4 mm; stem lengths 80/90/100/110/120/130 mm; weight 320 g (380x110); store variants at fetch time 380 x 80-120, 400 x 80-120, 420 x 90-120 (no 360 listed). (3) AVRO Gen-1 Cockpit (https://tavelo.cc/products/avro-gen-1-cockpit, USD 300): widths 36/38/40/42 = hood-to-hood 360/380/400/420 mm, drop-to-drop 380/400/420/440 mm; bar reach 77 mm; drop 130 mm; drop flare 2.6 deg; stem angle 10 deg (drawn as 80 deg to the steerer, labelled "80 deg (-10 deg)"); stem clamp stack 36.4 mm; stem lengths 80/90/100/110/120/130 (2025-02 spec image, 330 g at 400x110) or 80-140 (2024-06 spec image, 340 g at 400x110); store variants 360-420 x 80-140. Headset: "Headset Bearing (37-46.9mm to 34.1-46.9mm)" (upper and lower bearing ID-OD as printed; the steerer size is NOT stated). Spacers, max spacer stack and headset cover/top-cap height: NOT published ("Top Cap for Cockpit" USD 15 and "Expander Plug" USD 15 are sold as accessories). Seatpost: "Grow seat post, Toray T800, 8mm offset" - proprietary post included with the frameset, 113 g without saddle clamp; no other offset or length options listed. Frame: Toray T800 carbon, "Clean Routing", threaded BSA bottom bracket, 12x142 mm rear and 12x100 mm front thru-axles, flat-mount disc, UDH dropout, down tube storage hatch (mini tool included) plus a frame-specific TAVELO LOAD FidLock MidLoader bag; fork Toray T800, 12x100 mm thru-axle, flat mount, 460 g raw; frame weight per size 830/845/860/880/895/960 g +/-25 g raw finished (XS to XXL); max tyre 55 mm front, 50 mm rear ("measured tyre clearance"). Colours: Purple and Black; list price USD 1,650.00.

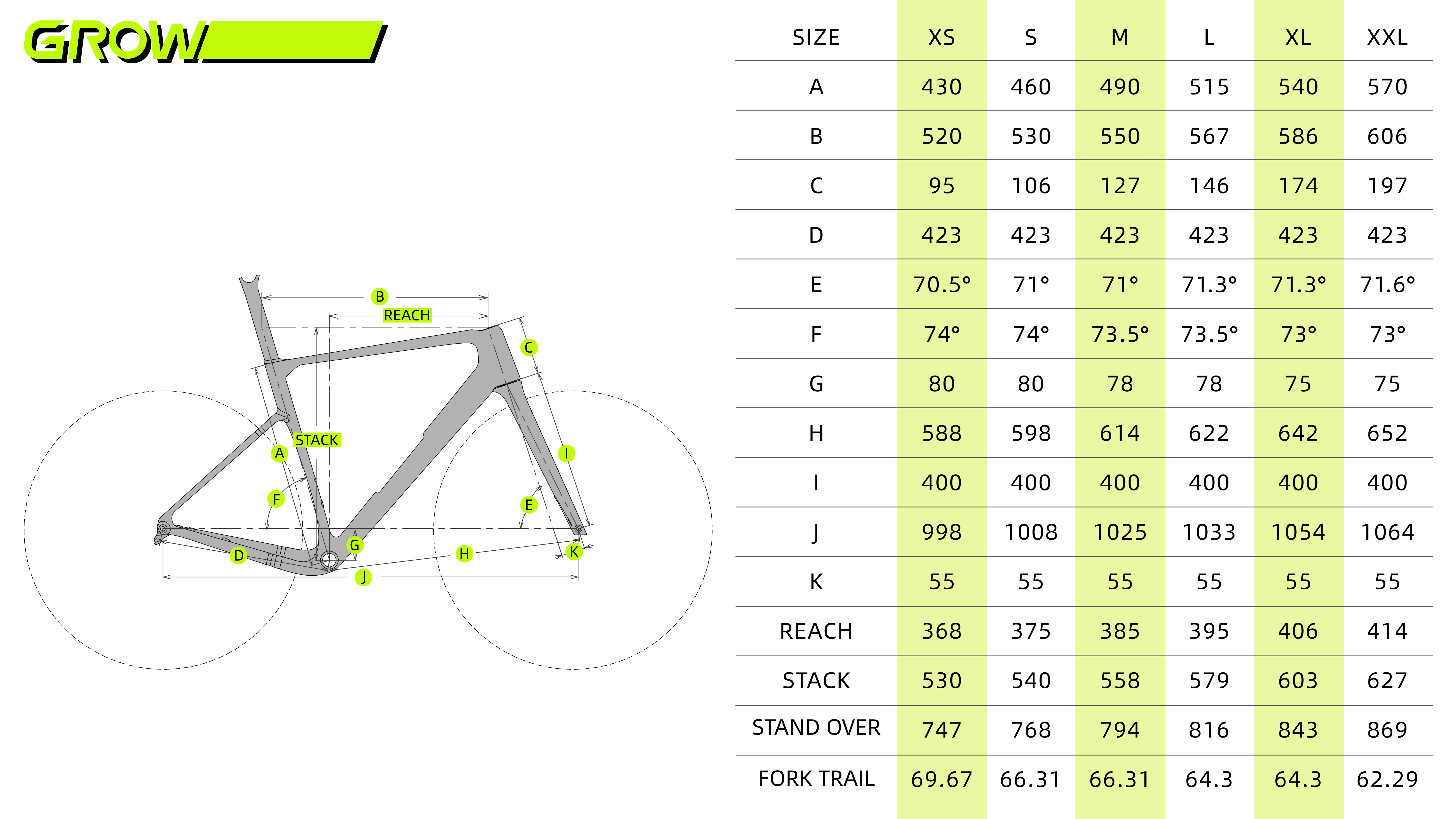

site built on Ueeshop, assets hosted at ueeshop.ly200-cdn.com). The product page's "Description" tab is empty and the "Geometry" tab is one image (diagram + table); no HTML/PDF table exists, so every number in sizes[] was read from the image by the collector at native resolution. Table columns are XS/S/M/L/XL/XXL; the store's size dropdown is named by row A only (430/460/490/515/540/570) and the Specification tab writes them "XS (430), S(460), M(490), L(515), XL(540), XXL(570)" - size_label uses that naming. STACK DATUM: the diagram draws STACK vertically from the BB centre to a horizontal reference line at the top of the head tube (no bar or headset cover drawn) and REACH horizontally from the BB centre to the same head-tube-top point - conventional frame stack/reach, not to the bar. Standover datum (where along the top tube) is not stated. Angles are published to 0.1 deg and trail to 0.01 mm exactly as shown; nothing was rounded. Trail row is labelled "FORK TRAIL" and is maker-published (kept); back-solving trail with E and K gives an implied wheel radius of about 361.5 mm (roughly 700c x 50 mm) for every size, so the maker's trail assumes a large gravel tyre (assumption not stated on the page). integrated_cockpit is true because the frame is fully internally routed and the maker pairs it only with its one-piece AVRO cockpits; the frameset itself ships bar-less, so stock_stem_length / stock_bar_width are null. MODEL YEAR: not stated anywhere on the page; footer copyright 2024; product photos uploaded 2026-03-31 (CDN path 2603/31), geometry image uploaded 2026-04-03 (CDN path 2604/03), meta description still reads "A brand-new gradual control product will be launched soon" - i.e. a 2026 launch, but no model year is printed so the field is left null. Category taken from the brief (gravel); the maker's own copy says "GROW - Aero Unleashed" and "Aerodynamic gravel performance, born to go faster" (an aero gravel bike). No aggregator was consulted; Panda Podium was not used for this file. Source: image_table (brand site, "Geometry" tab is a single image: https://ueeshop.ly200-cdn.com/u_file/UPBB/UPBB237/2604/03/photo/ab4108fe576bfc548416c7befde2b092.jpg, 6003x3378 px, geometry diagram + table; numbers read from the image by the collector, image NOT stored)
