Tavelo Arden
Road · 7 sizes
Sign in and add the bike you ride, and this table will say what each size needs for your position.
Sign in
This is the bike I ride
No account is needed to read the table. Report a wrong number · Correct this bike
- Bike
- Tavelo Arden · Road · 7 sizes · integrated cockpit
- Geometry
- tavelo.cc, fetched 21 Oct 2026, re-checked, no differences
- Cockpit
- Generic stem and bar, assumed
- Solved with
- cover 15 mm (assumed), max spacers 40 mm (assumed), stem clamp centre 20 mm (assumed), so every verdict carries ±10 mm at the bar
- Sheet
- 22 October 2026 · 686 bikes, 74 makes, 3,984 sizes in the catalogue
Geometry, every size, from the maker's table
The tinted row is the size drawn beside it. Press a size to draw it.| Size | Stack (mm) | Reach (mm) | Head angle (deg) | Seat angle (deg) | Head tube (mm) | Chainstay (mm) | Wheelbase (mm) | Standover (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 508 | 365 | 71 | 74.5 | 106.9 | 410 | 973 | 717 |
| S | 522 | 373 | 71.3 | 74.5 | 120.6 | 410 | 983 | 736 |
| M | 538 | 381 | 72.1 | 74 | 135.2 | 410 | 986 | 761 |
| L | 553 | 390 | 72.6 | 73.5 | 149.1 | 410 | 995 | 784 |
| XL | 570 | 397 | 73.2 | 73 | 165.9 | 410 | 999 | 809 |
| 2XL | 592 | 403 | 73.3 | 73 | 188.5 | 410 | 1011 | 835 |
| 3XL | 612 | 410 | 73.3 | 73 | 209.4 | 410 | 1024 | 859 |
The table runs on to the right: 6 more columns after Reach. Scroll it sideways to read them.
The L drawn to scale from the table, with no build on it. Stack and reach run from the bottom bracket to the top of the head tube; every size is solved from those two. One square is 100 mm.
The maker's cockpit
No stock cockpit I can name, so every size is solved on a generic stem and bar unless you choose one on the sheet.Generic stem and barAssumedNo bar is listed for this frame.
Frame facts
read from the maker's words, not a table: tavelo.cc- Tyre clearance
- not recorded yet
- Bottom bracket
- BSA 68
- Axles and brakes
- 12x100 / 12x142, flat mount
- UDH
- yes
- Seatpost
- 15 mm offset
- Frame weight
- not recorded yet
In the maker's words
Kept whole, as I read it off tavelo.cc.Sold as a frameset (frame, fork, seatpost, thru-axles); the frame is "Clean Routing" (fully internal) with "Headset Bearing (32.8-41.8mm to 34.1-46.9mm)" and the page offers Tavelo's AVRO one-piece cockpits as add-ons (their geometry is in docs/research/cockpits/tavelo-avro-rise.json, tavelo-avro-gen-1.json and tavelo-avro-gr.json).
Cockpit and seatpost, in the maker's words · 117 words
Sold as a frameset (frame, fork, seatpost, thru-axles); the frame is "Clean Routing" (fully internal) with "Headset Bearing (32.8-41.8mm to 34.1-46.9mm)" and the page offers Tavelo's AVRO one-piece cockpits as add-ons (their geometry is in docs/research/cockpits/tavelo-avro-rise.json, tavelo-avro-gen-1.json and tavelo-avro-gr.json). Specification tab: Arden Race frame Toray Race Carbon, threaded BSA 68 mm, 12x142 mm thru-axle, flat-mount disc, UDH; fork Arden Toray Race SL Carbon, 12x100 mm; seatpost Arden Toray Race SL Carbon, 15 mm offset (recorded as posts 15); Tavelo AR-1 thru-axles; max tyre 34 mm (2x) or 38 mm (1x). Weights (size L, c-t 500 mm, without paint): Arden Race frame 780 +/-25 g, Arden Race SL frame 680 +/-25 g, fork 355 g, seatpost 115 g.
SOURCE: tavelo.cc is Tavelo's own store (Tavelo Xiamen Sports Co., Ltd. Source: image_table (brand site, the "Geometry" tab is a single image
How I read the maker's table

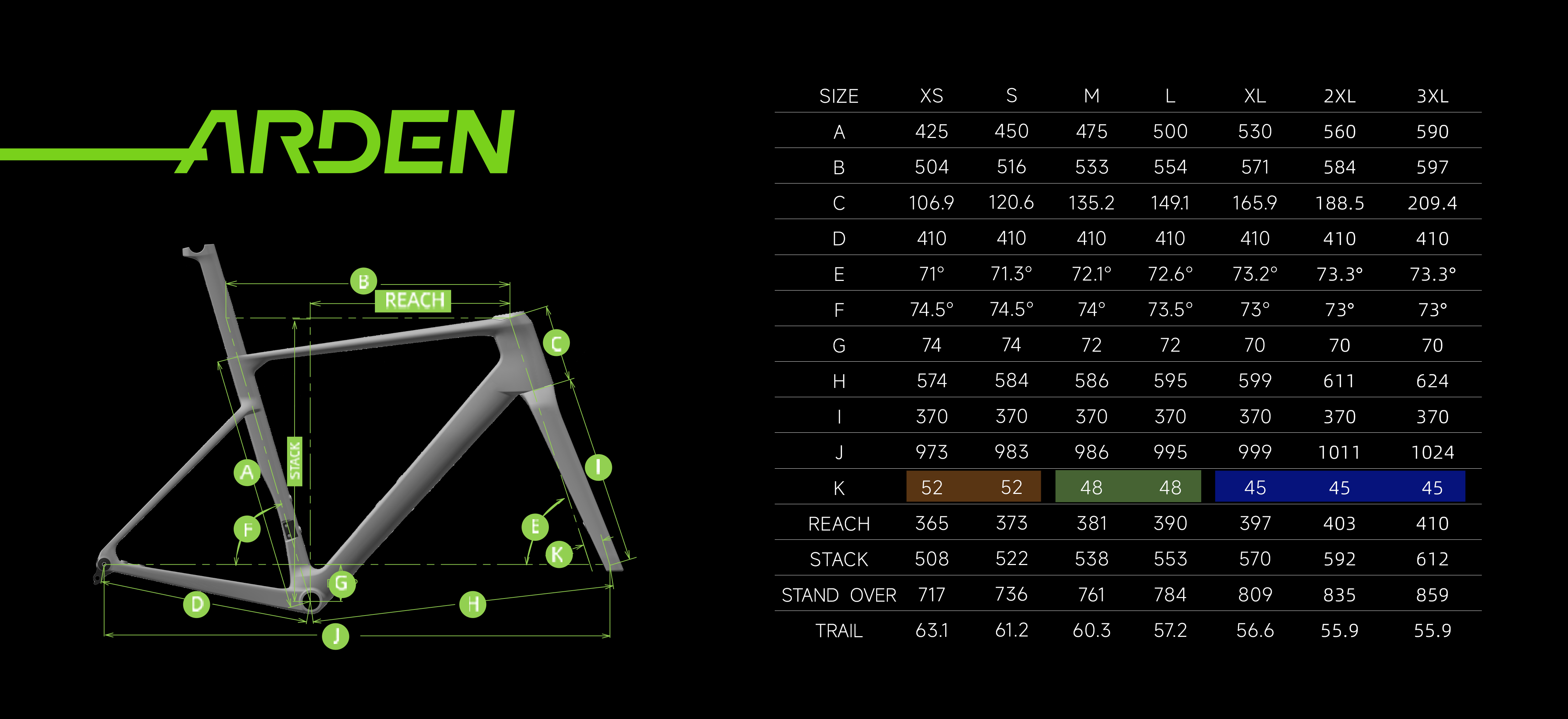

Ueeshop). The Arden Race page https://tavelo.cc/products/tavelo-arden-race-frameset and the Arden Race SL page https://tavelo.cc/products/tavelo-arden-race-sl-frameset show the same geometry image (the SL is the lighter layup, 680 g against 780 g), so they are one file. TABLE LEGEND (the lettered diagram, as on the Grow): A seat tube length; B top tube, drawn horizontal (top_tube_effective); C head tube length; D chainstay; E head tube angle; F seat tube angle; G BB drop; H front centre; I fork length 370 every size (not a schema field); J wheelbase; K fork offset, colour-banded 52 (XS, S), 48 (M, L), 45 (XL, 2XL, 3XL); REACH and STACK to the head tube top; STAND OVER; TRAIL (maker-published, kept). Size labels exactly as the table (XS to 3XL). MODEL YEAR: not printed (geometry image uploaded 2026-08-04); model_year null. Bike Insights lists Tavelo "Arden" 2026 (see cross_check). No Panda Podium, Geometry Geeks or 99 Spokes request was made.
Source: image_table (brand site, the "Geometry" tab is a single image: https://ueeshop.ly200-cdn.com/u_file/UPBB/UPBB237/2608/04/photo/c83812fe35.jpeg, 4408x2022 px, lettered diagram + table; the Arden Race SL page carries the same image; numbers read by eye, image NOT stored)
