Spcycle R099
Road · 6 sizes
Sign in and add the bike you ride, and this table will say what each size needs for your position.
Sign in
This is the bike I ride
No account is needed to read the table. Report a wrong number · Correct this bike
- Bike
- Spcycle R099 · Road · 6 sizes
- Geometry
- sp-cycle.com, fetched 21 Oct 2026, re-checked, no differences
- Cockpit
- Generic stem and bar, assumed
- Solved with
- cover 15 mm (assumed), max spacers 40 mm (assumed), stem clamp centre 20 mm (assumed), so every verdict carries ±10 mm at the bar
- Sheet
- 22 October 2026 · 686 bikes, 74 makes, 3,984 sizes in the catalogue
Geometry, every size, from the maker's table
The tinted row is the size drawn beside it. Press a size to draw it.| Size | Stack (mm) | Reach (mm) | Head angle (deg) | Seat angle (deg) | Head tube (mm) | Chainstay (mm) | Wheelbase (mm) | Standover (mm)not published |
|---|---|---|---|---|---|---|---|---|
| 490 | 510 | 376 | 71.75 | 75.5 | 109 | 410 | 974 | |
| 520 | 523 | 381 | 73 | 74 | 120 | 410 | 977 | |
| 540 | 541 | 385 | 73 | 74 | 137 | 410 | 982 | |
| 560 | 562 | 396.5 | 73.5 | 73.5 | 157 | 410 | 995 | |
| 580 | 588 | 403 | 73.5 | 73.5 | 184 | 410 | 1009 | |
| 610 | 609 | 409 | 74 | 73 | 204 | 410 | 1016 |
The table runs on to the right: 6 more columns after Reach. Scroll it sideways to read them.
The 560 drawn to scale from the table, with no build on it. Stack and reach run from the bottom bracket to the top of the head tube; every size is solved from those two. One square is 100 mm.
The maker's cockpit
No stock cockpit I can name, so every size is solved on a generic stem and bar unless you choose one on the sheet.Generic stem and barAssumedNo bar is listed for this frame.
Frame facts
read from the maker's words, not a table: sp-cycle.com- Tyre clearance
- not recorded yet
- Bottom bracket
- T47 85.5
- Axles and brakes
- not recorded yet
- UDH
- not recorded yet
- Seatpost
- not recorded yet
- Frame weight
- 870 g
In the maker's words
Kept whole, as I read it off sp-cycle.com.Two-piece cockpit (the frameset is sold without a bar).
Cockpit and seatpost, in the maker's words · 19 words
Two-piece cockpit (the frameset is sold without a bar). Stock stem and bar per size are not published (null).
SOURCE: www.sp-cycle.com is Spcycle's own store (51microshop platform. Source: image_table (maker's own store, description image
How I read the maker's table

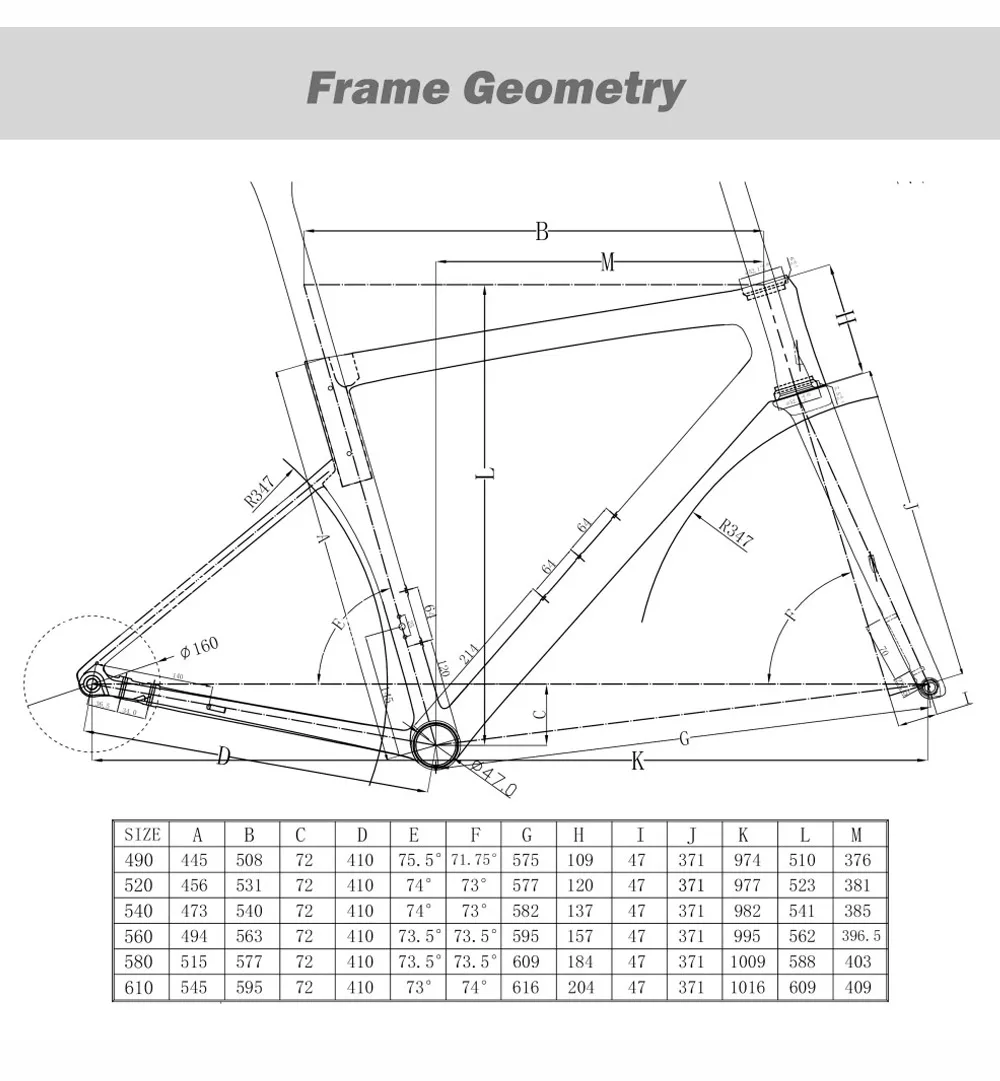

the brand also sells through an AliExpress store, which was not used). The geometry is an image in the product description on the maker's page; the page embeds that image from Alibaba's image CDN (ae01.alicdn.com or ae-pic-a1.aliexpress-media.com) or from the store's own image bucket, and it was fetched from the address the maker's page gives. Table columns keyed to the drawing (letters only): A seat tube (along the tube), B top tube (drawn horizontal), C BB drop, D chainstay, E seat angle, F head angle, G front centre, H head tube, I fork offset, J fork length 371 every size (not in the schema), K wheelbase, L stack (drawn vertical from the BB), M reach (drawn horizontal); the letter meanings are my reading of the drawing. Parameter list image: Model SP-R099; Toray T1000; T47 85.5; tyres to 700 x 35C; frame 870+/-50 g, fork 395+/-10 g, seatpost 175+/-10 g; special seatpost 300 or 380 mm; sizes 49/52/54/56/58/61 (chart labels 490-610 kept as printed). Every size closes its top tube on its reach, stack and seat angle within 0.2 mm. Trail and standover are not published unless named. STACK DATUM: not stated; head tube top assumed. MODEL YEAR: 2027, from the listing title. No Panda Podium, Geometry Geeks or 99 Spokes request was made.
Source: image_table (maker's own store, description image https://ae-pic-a1.aliexpress-media.com/kf/Sd49b40e8b4b643839f0966df5d5c28c52.jpg, 1000x1081 (served as WebP), read by eye)
