Elves Falath Pro
Aero road · 7 sizes
Sign in and add the bike you ride, and this table will say what each size needs for your position.
Sign in
This is the bike I ride
No account is needed to read the table. Report a wrong number · Correct this bike
- Bike
- Elves Falath Pro · Aero road · 7 sizes · integrated cockpit
- Geometry
- store.elvesbike.com, fetched 21 Oct 2026, re-checked, no differences
- Cockpit
- Generic stem and bar, assumed
- Solved with
- cover 15 mm (assumed), max spacers 40 mm (assumed), stem clamp centre 20 mm (assumed), so every verdict carries ±10 mm at the bar
- Sheet
- 22 October 2026 · 686 bikes, 74 makes, 3,984 sizes in the catalogue
Geometry, every size, from the maker's table
The tinted row is the size drawn beside it. Press a size to draw it.| Size | Stack (mm) | Reach (mm) | Head angle (deg) | Seat angle (deg) | Head tube (mm) | Chainstay (mm) | Wheelbase (mm)not published | Standover (mm)not published |
|---|---|---|---|---|---|---|---|---|
| XS-44 | 491 | 359 | 69.1 | 74.5 | 98 | 410 | ||
| S-46 | 500.6 | 367.8 | 71 | 74.5 | 100 | 410 | ||
| M-49 | 523.2 | 369.1 | 71.5 | 74 | 123 | 410 | ||
| L-52 | 530.6 | 377.2 | 72 | 74 | 129 | 410 | ||
| XL-54 | 536.6 | 380.8 | 72.5 | 74 | 137 | 410 | ||
| 2XL-56 | 556.9 | 382 | 73 | 73.5 | 153 | 410 | ||
| 3XL-59 | 576.1 | 388.8 | 73 | 73.5 | 173 | 410 |
The table runs on to the right: 6 more columns after Reach. Scroll it sideways to read them.
The L-52 drawn to scale from the table, with no build on it. Stack and reach run from the bottom bracket to the top of the head tube; every size is solved from those two. One square is 100 mm.
The maker's cockpit
No stock cockpit I can name, so every size is solved on a generic stem and bar unless you choose one on the sheet.Elves OROME AEROPROVendor-listedstem -10 · reach 70 · drop 125 · clamp 42 · lengths 90-120 · widths 370-430
Frame facts
read from the maker's words, not a table: store.elvesbike.com- Tyre clearance
- not recorded yet
- Bottom bracket
- BB86
- Axles and brakes
- 12x100 / 12x142, flat mount
- UDH
- not recorded yet
- Seatpost
- not recorded yet
- Frame weight
- 1080 g, size 46
In the maker's words
Kept whole, as I read it off store.elvesbike.com.Sold as a frameset; the store bundles it ("Falath Disc+Handlebar") with the OROME AEROPRO one-piece bar, which is not documented with numbers on this page.
Cockpit and seatpost, in the maker's words · 95 words
Sold as a frameset; the store bundles it ("Falath Disc+Handlebar") with the OROME AEROPRO one-piece bar, which is not documented with numbers on this page. Disc spec sheet: headset 1-1/2" lower and 1-1/2" upper, flat mount, BB86 press fit, full integrated cable routing, 12x142 and 12x100 thru-axles, fork offset 45 mm, 398 g, steerer 300 mm; seatpost 400 mm, 258 g, single-bolt; accessories "ELVES HEADSET+INTEGRATED HANDLEBAR SPACERS"; frame 1080 g (size 46). The rim page's sheet: headset 1-1/8" lower (8 mm) and 1-1/8" upper (7 mm), direct mount brakes, BB86, seatpost ELVES SP06 350 mm.
SOURCE: store.elvesbike.com is Elves' own store (Ueeshop, images on ueeshop.ly200-cdn.com). Source: image_table (the Falath Pro Disc page's description image
How I read the maker's table

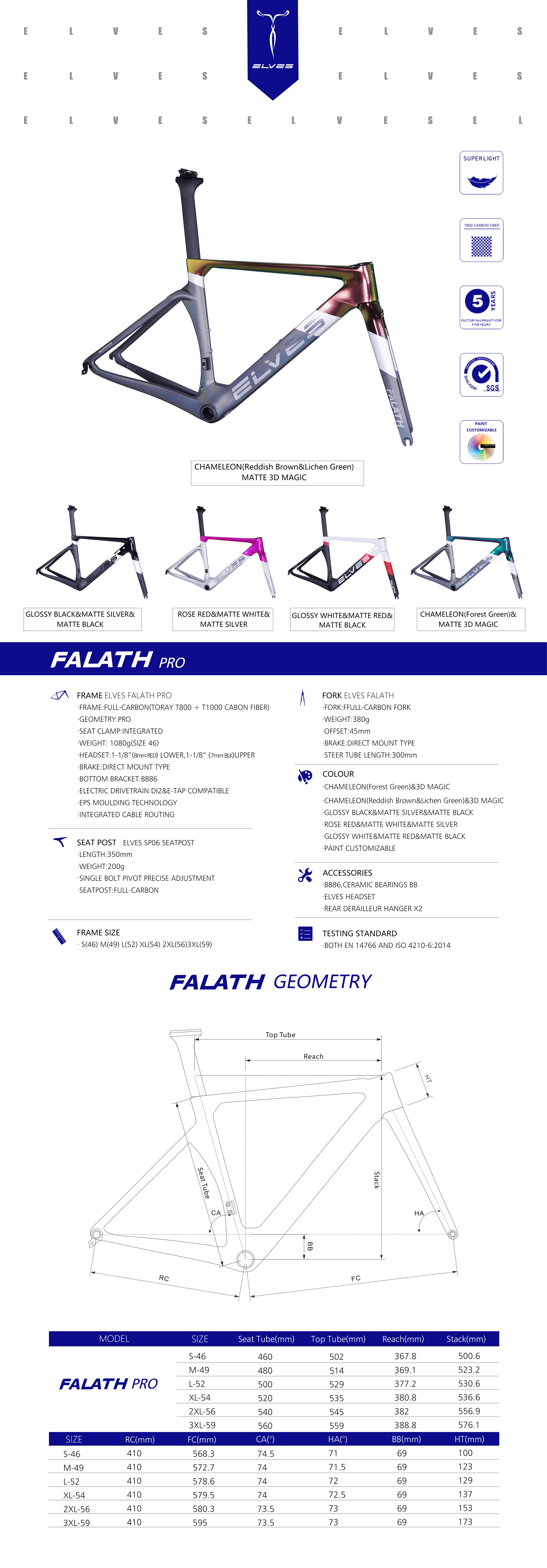

TABLE LEGEND (the drawing above the table): Seat Tube (BB centre to the top of the seat tube); Top Tube, horizontal (top_tube_effective); Reach and Stack to the head tube top; RC chainstay; FC front centre; CA seat angle; HA head angle; BB drop; HT head tube. fork_offset 45 is the spec sheet's fork "OFFSET:45mm". The rim-brake page (https://store.elvesbike.com/products/elves-falath-pro-carbon-road-aero-framesets, image https://ueeshop.ly200-cdn.com/u_file/UPAU/UPAU610/2608/19/photo/fc0019bde9.jpg, 1980x5680) prints the same table for S-46 to 3XL-59 (no XS-44 row), cell for cell, so rim and disc are one file. MAKER CONFLICT, FLAGGED FOR CARL: a third Elves page, https://store.elvesbike.com/products/2022-elves-falath-pro-disc-brake-carbon-road-framesets (image https://ueeshop.ly200-cdn.com/u_file/UPAU/UPAU610/2508/26/photo/202203.jpg), prints the same table except the S-46 seat angle 75 (here 74.5) and the M-49 seat angle 74.5 (here 74); reach + stack / tan(angle) closes the printed top tube on those two sizes with 75 and 74.5 (501.9 and 514.2 against 502 and 514) and misses by 4.6 and 5.1 mm with 74.5 and 74, so the 2022 page's angles look right and this table's two cells look like slips; kept as printed here, and that page's spec sheet describes a caliper-brake frame, so it was not used as the source. Size labels exactly as the table (XS-44 to 3XL-59). Standover and trail are not published. No Panda Podium, Geometry Geeks or 99 Spokes request was made.
Source: image_table (the Falath Pro Disc page's description image https://ueeshop.ly200-cdn.com/u_file/UPAU/UPAU610/2104/photo/8a6b39f26f.jpg, 1980x5680 px: frame photos, the "FALATH PRO DISC" spec sheet, the "FALATH PRO DISC GEOMETRY" drawing and table; read by eye, not stored)
