Cosmosworks Oi!
Gravel · 4 sizes
Sign in and add the bike you ride, and this table will say what each size needs for your position.
Sign in
This is the bike I ride
No account is needed to read the table. Report a wrong number · Correct this bike
- Bike
- Cosmosworks Oi! · Gravel · 4 sizes
- Geometry
- cosmosebike.com, fetched 21 Oct 2026, re-checked, no differences
- Seat angle convention
- Calculated from Cosmosworks' table
- Cockpit
- Generic stem and bar, assumed
- Solved with
- cover 10 mm (assumed), max spacers 40 mm (assumed), stem clamp centre 20 mm (assumed), so every verdict carries ±10 mm at the bar
- Sheet
- 23 October 2026 · 879 bikes, 79 makes, 4,979 sizes in the catalogue
Geometry, every size, from the maker's table
The tinted row is the size drawn beside it. Press a size to draw it.The table runs on to the right: 6 more columns after Reach. Scroll it sideways to read them.
The L drawn to scale from the table, with no build on it. Stack and reach run from the bottom bracket to the top of the head tube; every size is solved from those two. One square is 100 mm.
The maker's cockpit
No stock cockpit I can name, so every size is solved on a generic stem and bar unless you choose one on the sheet.Generic stem and barAssumedNo bar is listed for this frame.
Frame facts
read from the maker's words, not a table: cosmosebike.com- Tyre clearance
- 40 mm
- Bottom bracket
- not recorded yet
- Axles and brakes
- not recorded yet
- UDH
- not recorded yet
- Seatpost
- not recorded yet
- Frame weight
- not recorded yet
In the maker's words
Kept whole, as I read it off cosmosebike.com.Not published on the page (bar and stem not specified).
Cockpit and seatpost, in the maker's words · 20 words
Not published on the page (bar and stem not specified). Stock stem and bar per size are not published (null).
SOURCE: cosmosebike.com is Cosmosworks' own site (Chinese e-bike brand. Source: html table (maker's own site cosmosebike.com, "FIT & GEOMETRY" HTML table with the letter keys drawn on
How I read the maker's table

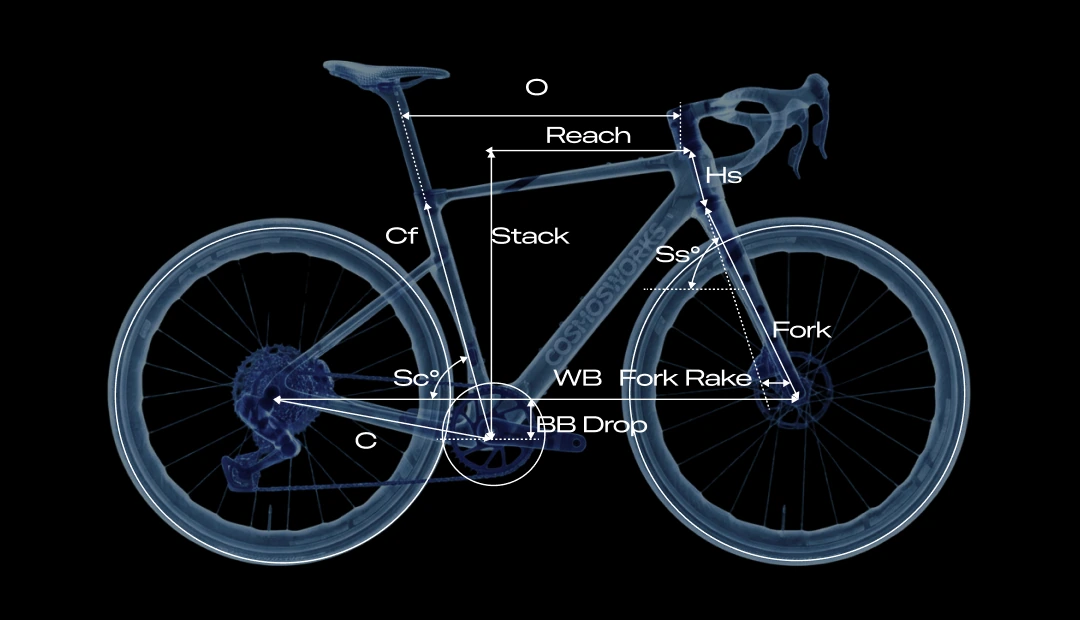

the Oi! is its non-assisted carbon aero gravel bike, "Toray T800 / T1000 carbon fiber | 15 mounting points | e-bike conversion", 6-7 kg complete, 40 mm tyre clearance). I am taking this to be the "Cosmo" of my list; that match is my guess. Letter keys read from the drawing: Cf seat tube (BB to top of seat tube, seat_tube_length), O top tube (drawn horizontal, top_tube_effective), Hs head tube, Ss deg head angle, Sc deg seat angle, C chainstay, WB, BB Drop, Fork Rake (fork_offset), Fork (length). Rows not in the schema: Recommended Rider Height 159-170cm / 168-176cm / 176-182cm / 182-190cm; Fork Length 400 / 400 / 400 / 400. The top tube closes on reach plus stack over tan of the seat angle to 0.1 mm on every size. STACK DATUM: not stated; head tube top assumed. MODEL YEAR: not printed (null). No Panda Podium, Geometry Geeks or 99 Spokes request was made.
Source: html table (maker's own site cosmosebike.com, "FIT & GEOMETRY" HTML table with the letter keys drawn on https://cosmosebike.com/assets/en/oi-geometry.webp; parsed from the raw HTML)
